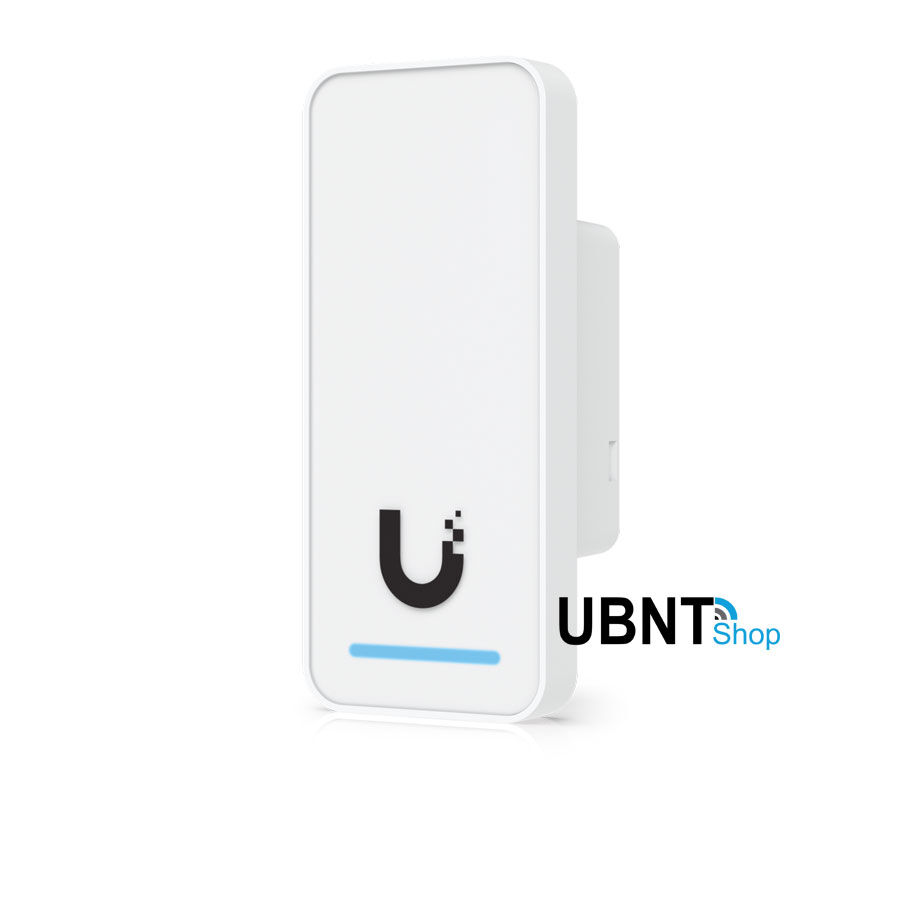

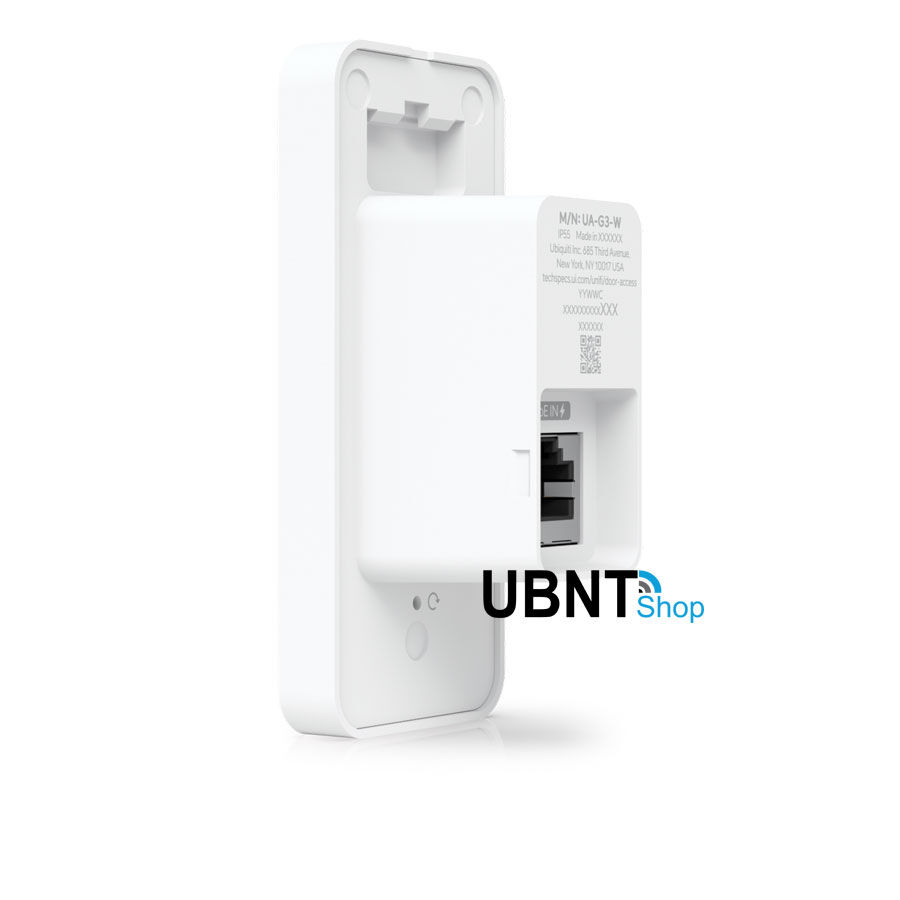

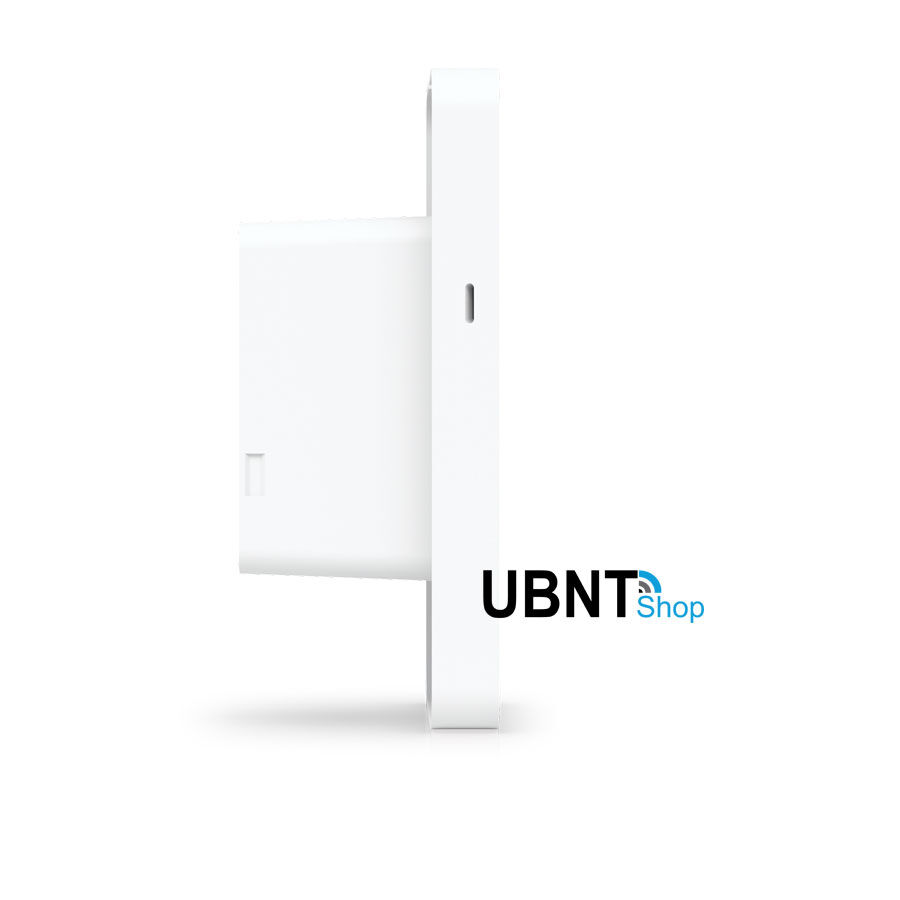

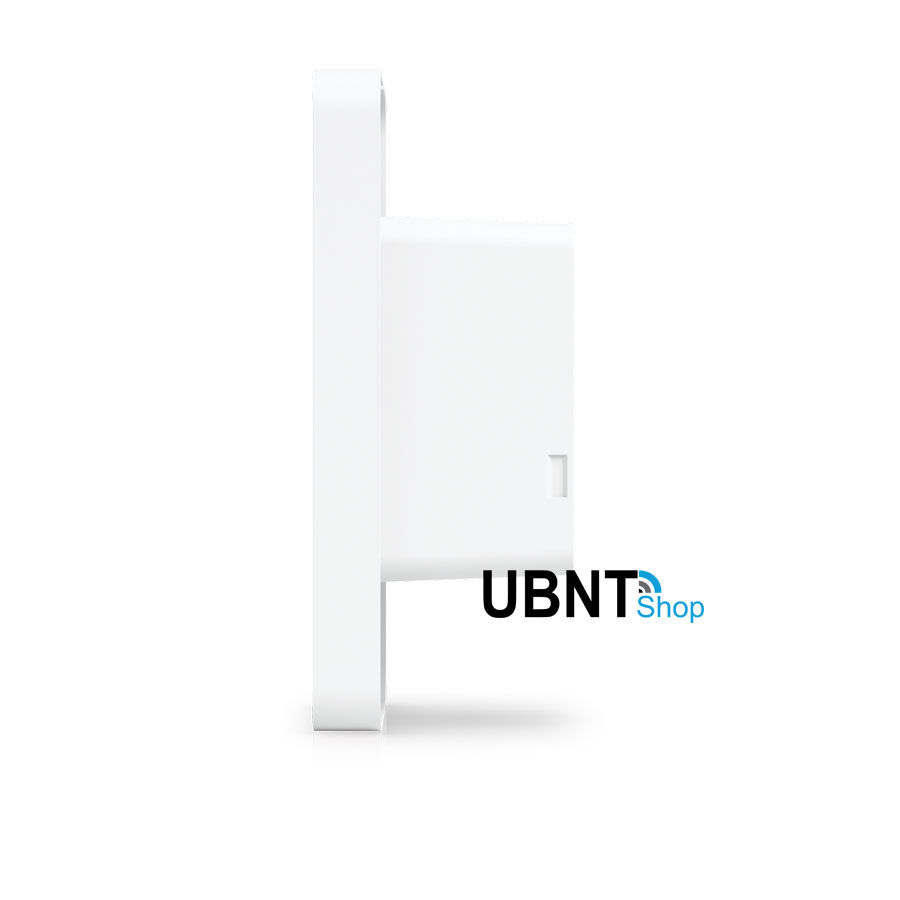

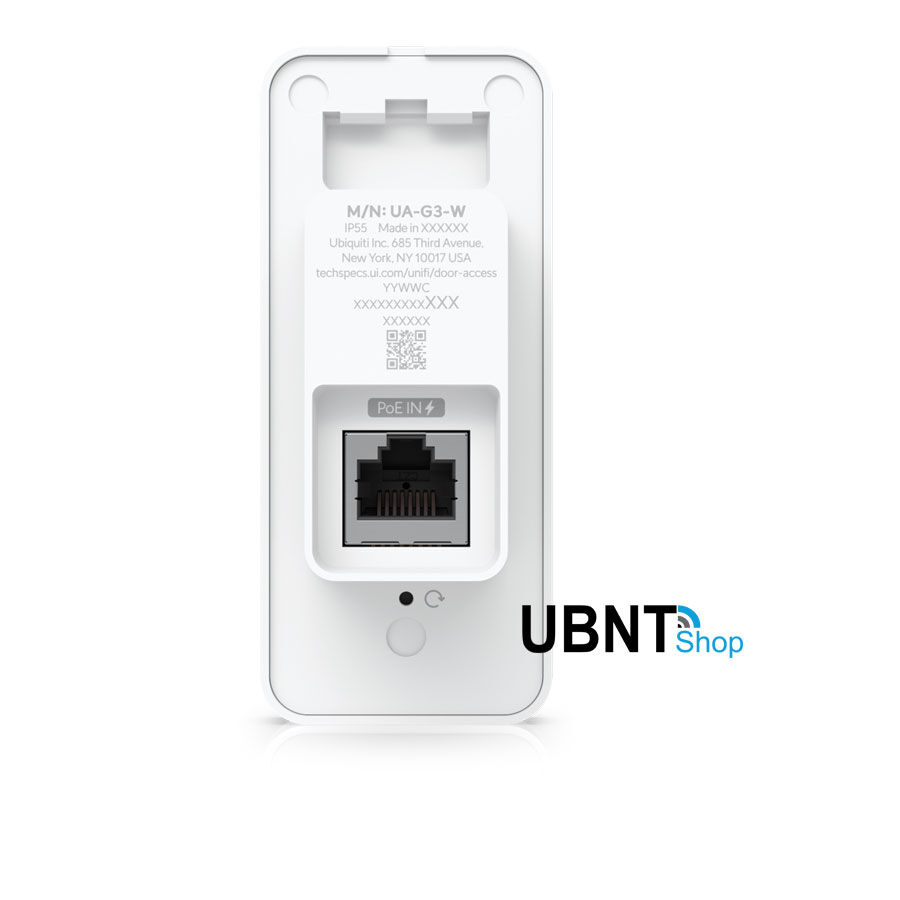

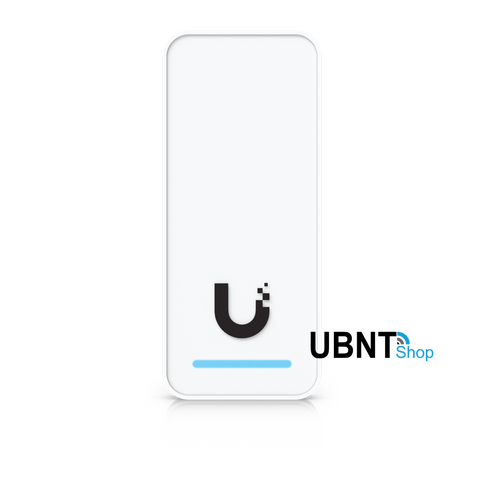

Ubiquiti G3 Reader, White, Compact Third-generation Access Reader



Compact third-generation access reader with Apple Touch Pass support.

Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass

Supports hand-wave unlocking as a request-to-exit device

Provides entry and exit greeting messages

IP55-rated weather resistance (-30 to 45°C)

Connects to UniFi Access Hub via PoE

* Available in White or Black

(UA-G3-W)

UniFi Access G3 Access Reader, White, Compact Third-generation



Pack Includes:



UniFi Access G3 Access Reader, White, Compact Third-generation - Specifications



Mechanical
Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight 82 g (2.9 oz)
Enclosure material Polycarbonate, glass
Mounting material Aluminum alloy
Mounting In wall, gang box
Weatherproofing IP55
Hardware
Networking interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range 48V DC
Max. power consumption 5W
ESD/EMP protection Air: ±15kV, contact: ±8kV
Sensors Proximity sensor
Speaker (1) 8 ohm, 0.7W
LEDs R/G/B/W (Learn more)
Button (1) Factory-reset
NFC frequency 13.56 MHz
NFC read range < 30 mm
NFC technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Operating environment Outdoor use
Ambient operating temperature -30 to 45° C (-22 to 113° F)
Ambient operating humidity 5 to 90% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level UA-G3, V01
SKU UA-G3-W
Model # UA-G3-W
Barcode # 810084697597
Brand Ubiquiti
Shipping Weight 0.1500kg
Shipping Width 0.045m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000180000m3
Unit Of Measure ea

UniFi Access G3 Access Reader, Compact Third-generation - Documents
