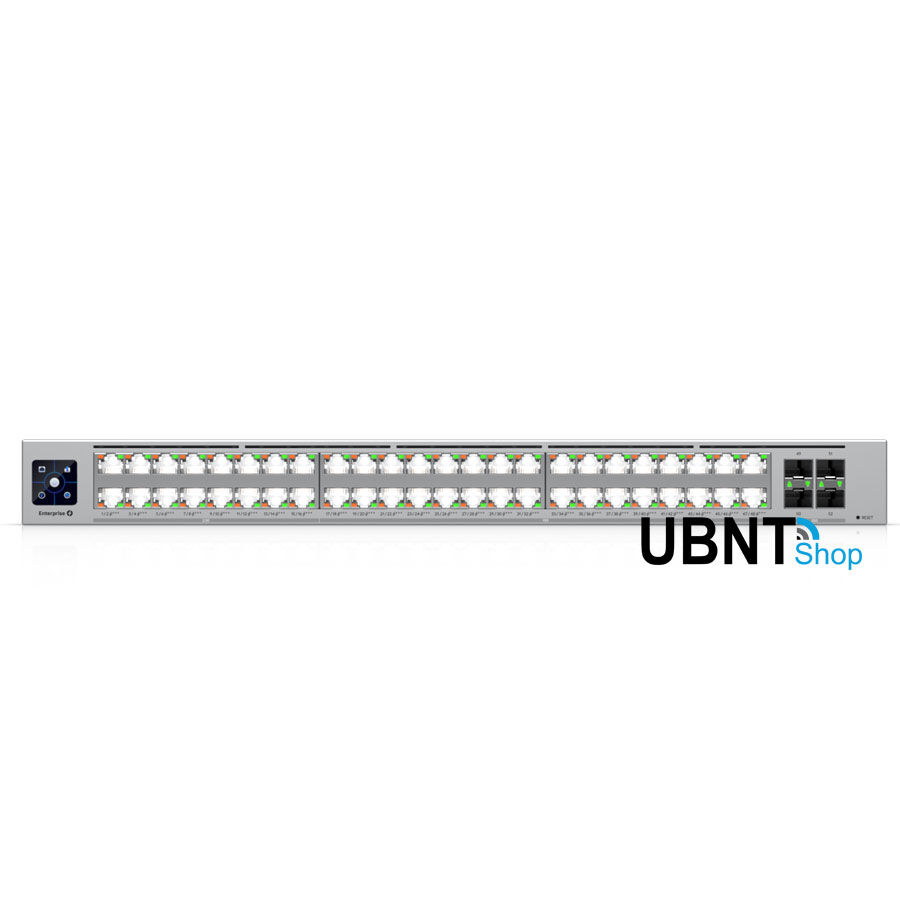

Ubiquiti UniFI Enterprise Campus Switch 48 Port Poe, Ring Topology, Ensuring Redundancy Within The Switch Stack, *Require Deal Reg*

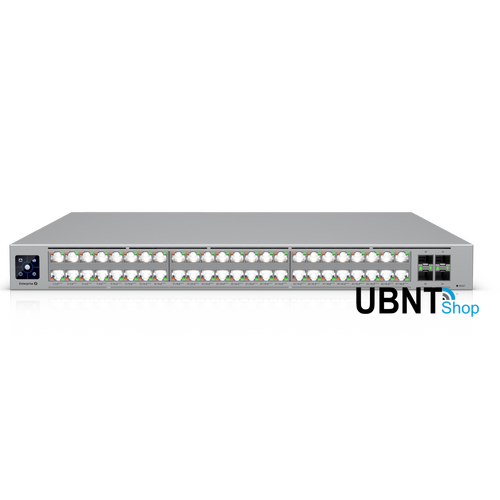

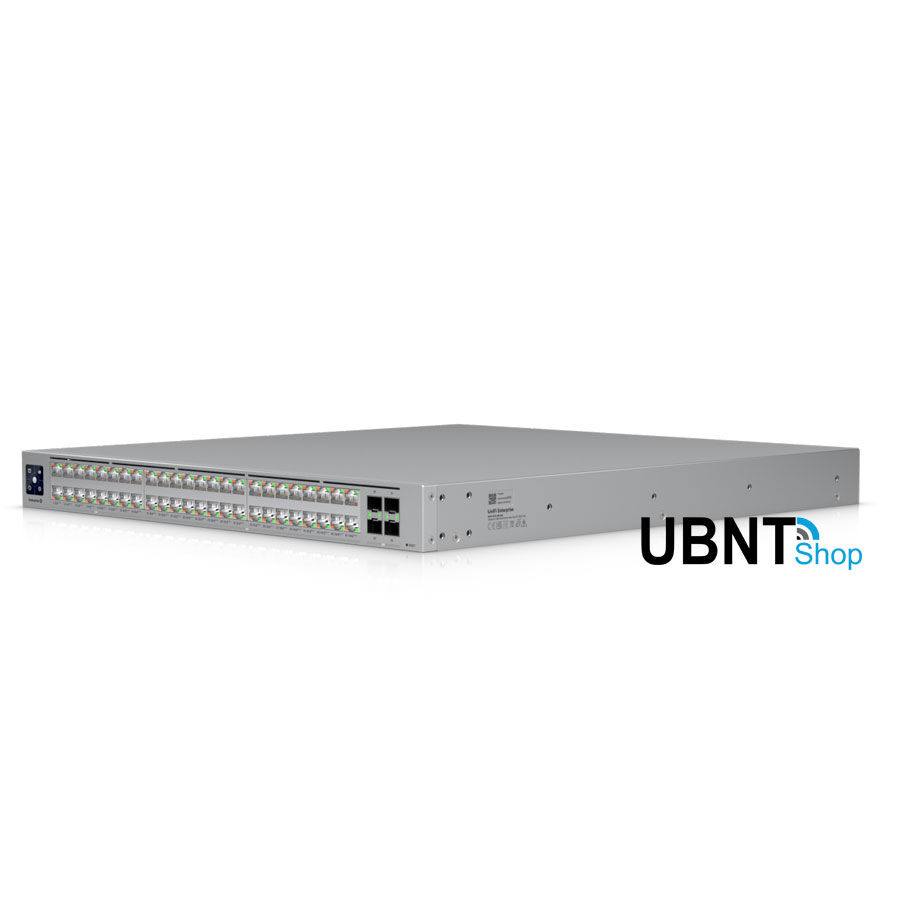

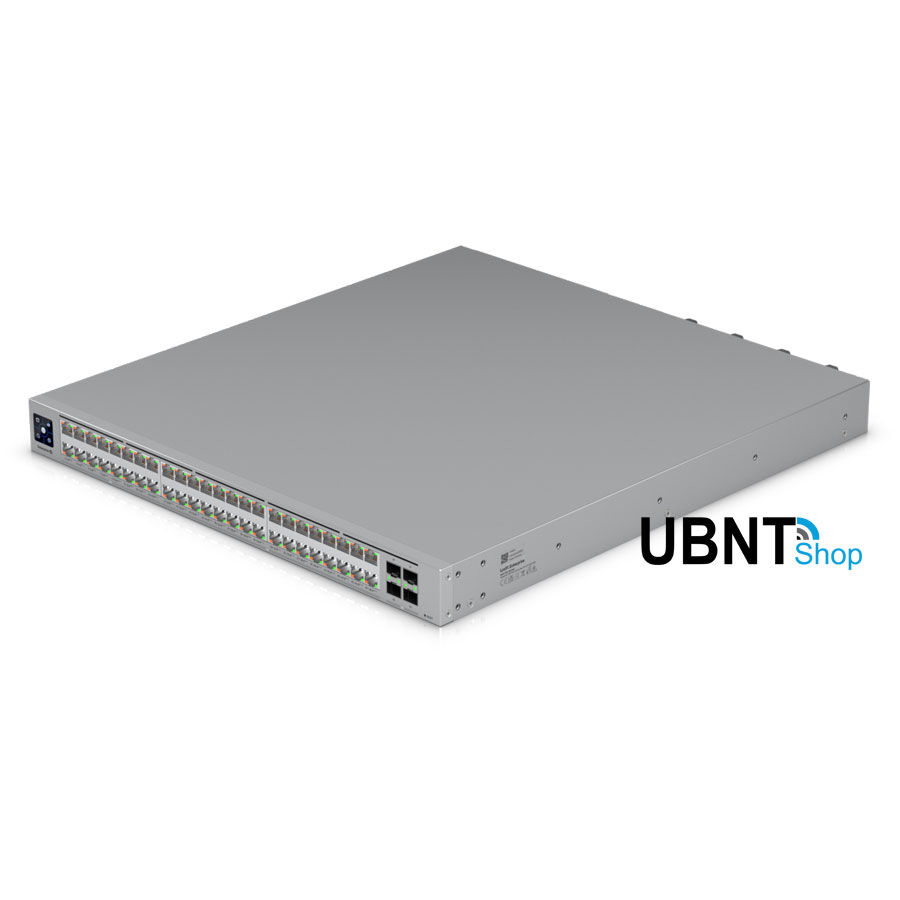

Enterprise-grade, Layer 3 Etherlighting™ PoE switch with (16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++, and (4) 25G SFP28 ports for high availability system design.

Features:

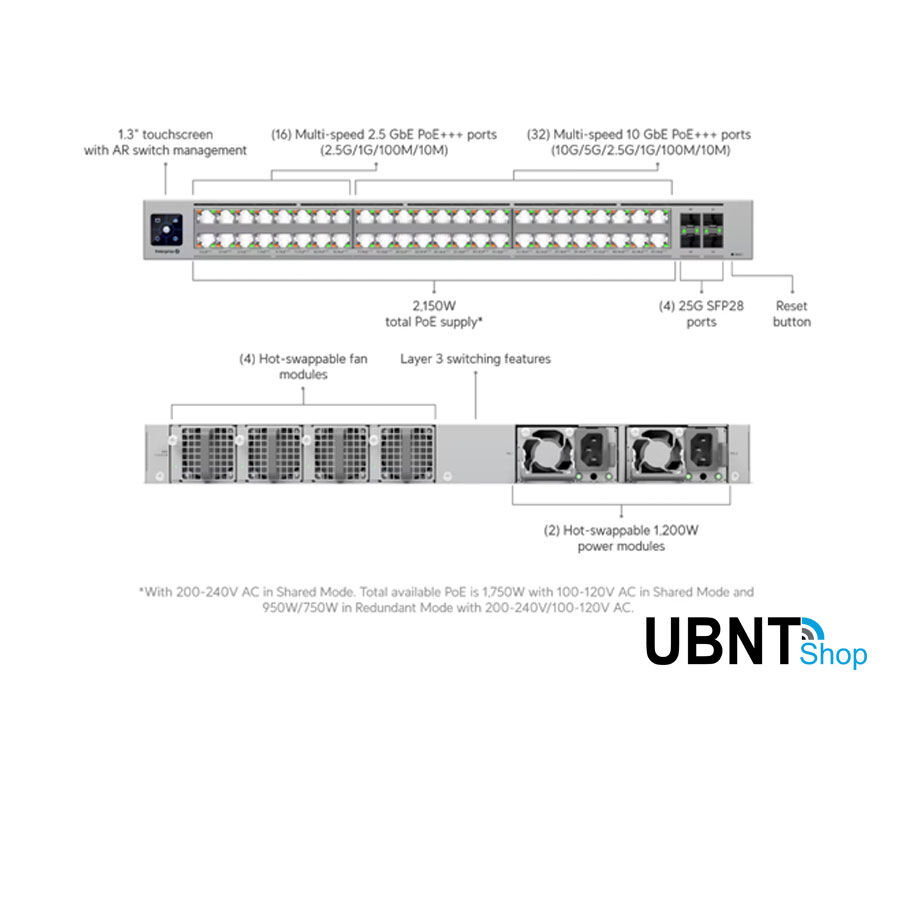

(16) 2.5 GbE PoE+++, (32) 10 GbE PoE+++ ports

(4) 25G SFP28 ports

(2) included hot-swappable power modules, with power sharing to expand total PoE availability, or 1+1 redundancy

(4) included hot-swappable fan modules, with 3+1 redundancy

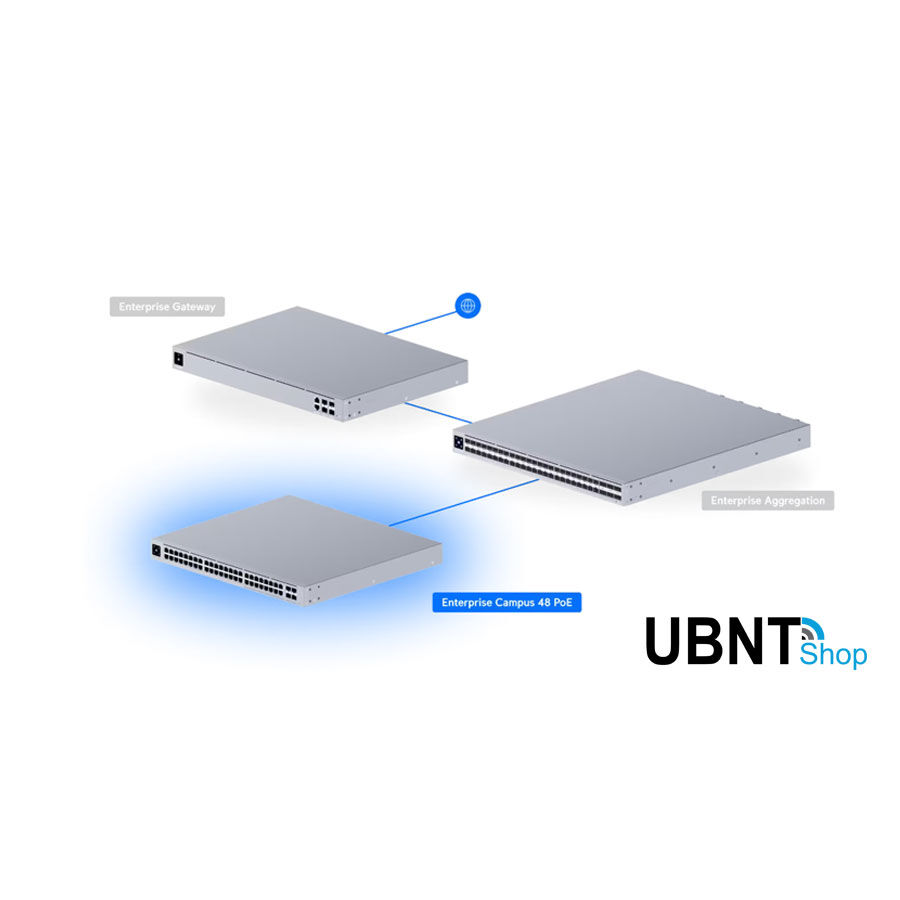

*Recommend being paired with Enterprise Campus Aggregation.



(ECS-48-POE)

Ubiquiti UniFI Enterprise Campus Switch 48 Port Poe, Ring Topology, Ensuring Redundancy Within The Switch Stack, *Require Deal Reg*

Pack Includes:

Ubiquiti UniFI Enterprise Campus Switch 48 Port Poe, Ring Topology, Ensuring Redundancy Within The Switch Stack, *Require Deal Reg*- Specifications:

Dimensions

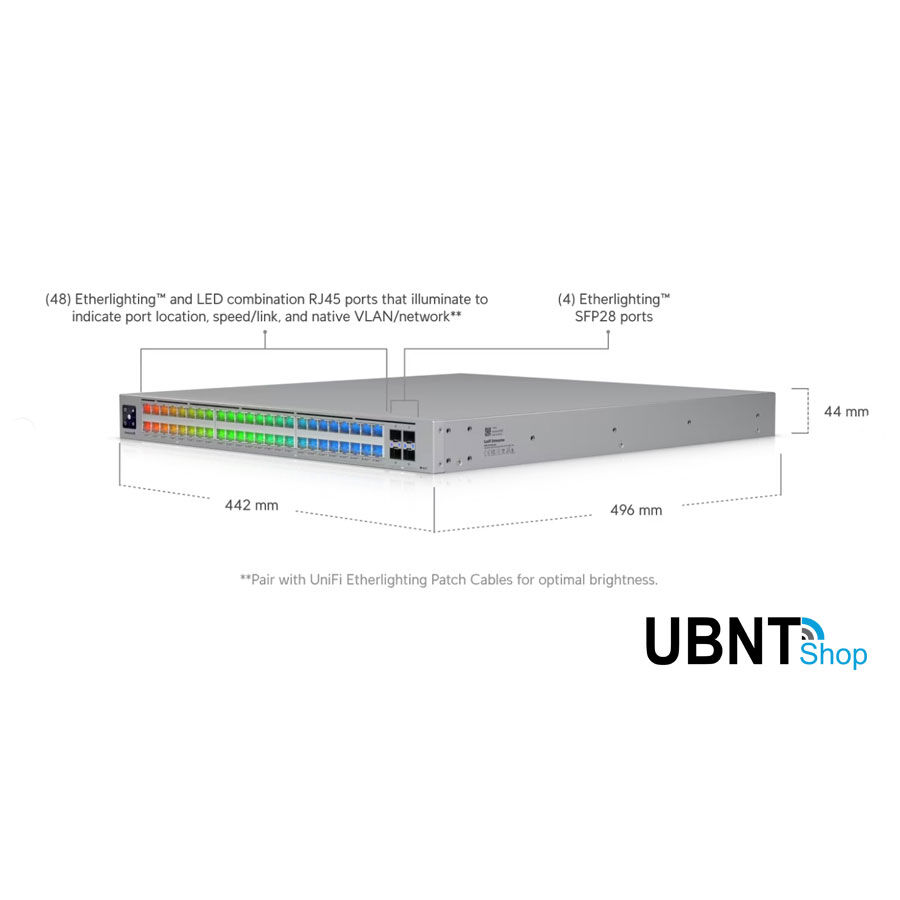

442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
Port Layout


2.5 GbE RJ45
16 (All PoE+++) (2.5G/1G/100M/10M)


10 GbE RJ45
32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)


25G SFP28
4 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W
Redundancy

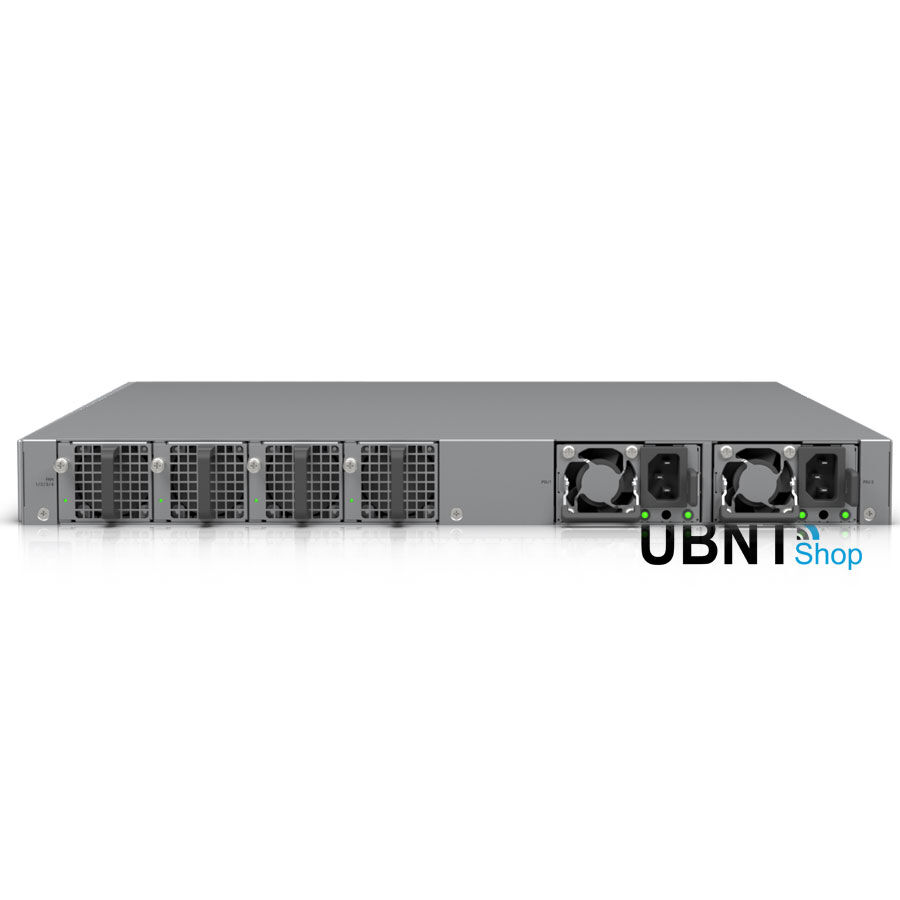

(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack mount (1U, Full-Depth)
Etherlighting™
✓

Performance
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size


ARP Entries
128,000


IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists


IPv4
256


MAC
256

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓

Hardware
PoE Ports


PoE+++
48
Max. PoE Wattage per Port by PSE


PoE
15.4W


PoE+
30W


PoE++
60W


PoE+++
90W
Max. Power Consumption
250W (Excluding PoE Output) 2400W (Including PoE Output)
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 1,200W power modules
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel

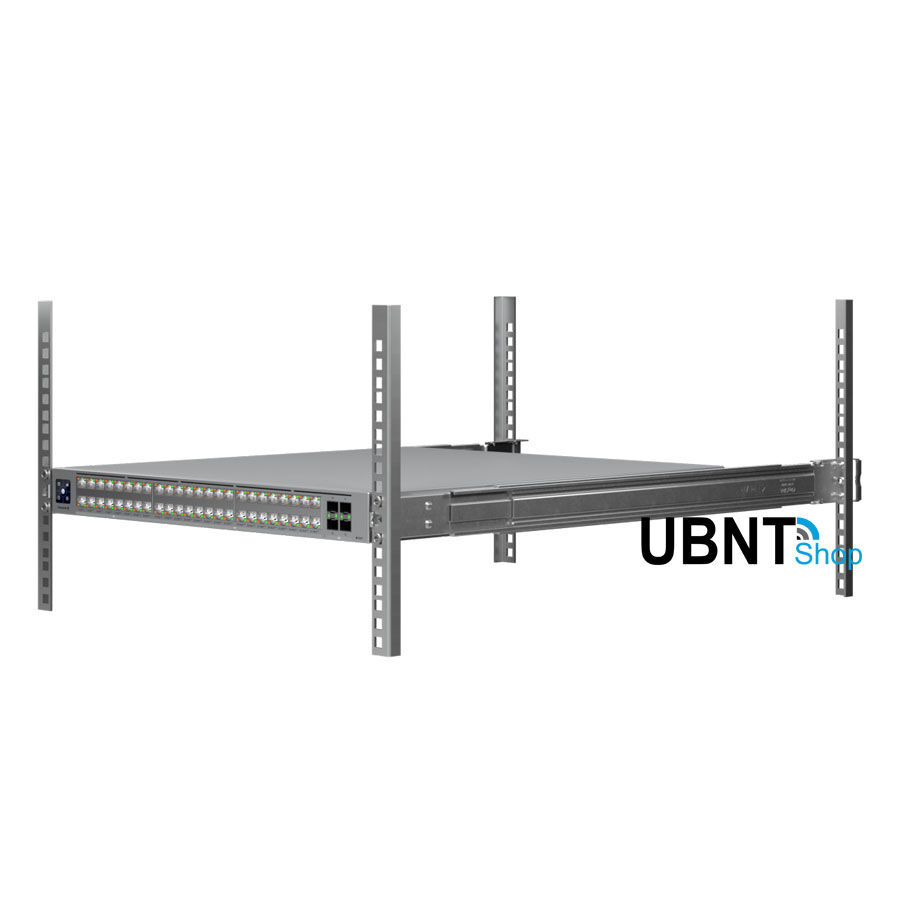

Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3" touchscreen
Fan Method
(4) hot-swappable fan modules
ESD/EMP Protection
Air: ± 30kV, contact: ± 19kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™


Ethernet
✓


SFP28
✓
LEDs


Ethernet
✓


System
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC

Software
Application Requirements


UniFi Network
Version 9.0.114 and later

Shipping Specifications

SKU ECS-48-POE
Model # ECS-48-POE
Brand UniFi-Switching
Barcode # 810084699119
Brand Ubiquiti
Shipping Weight 9.5000kg
Shipping Width 0.325m
Shipping Height 0.044m
Shipping Length 0.442m
Shipping Cubic 0.006321000m3
Unit Of Measure ea
