5-Port managed Gigabit Ethernet Switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.



Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices.

Power Options

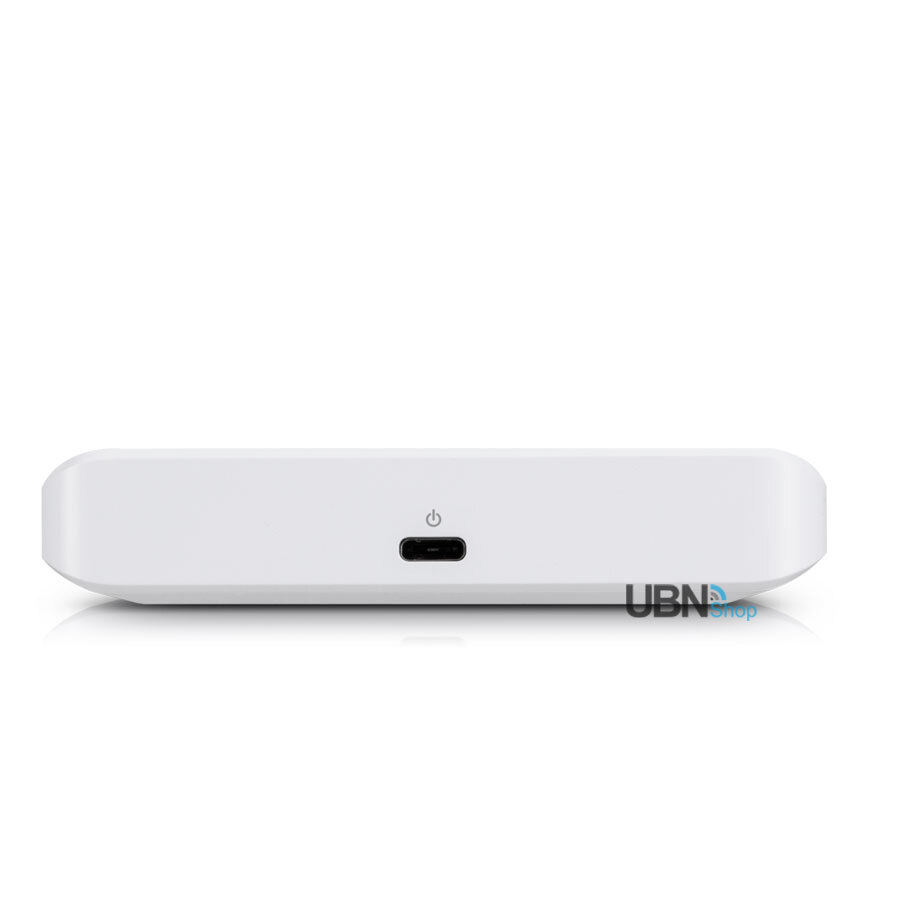

Power up the USW-Flex-Mini with the USB Type-C power adapter (Sold Separately, Included single pack only) or
with 802.3af/at PoE Adapter (Sold Separately).



(USW-FLEX-MINI-5)

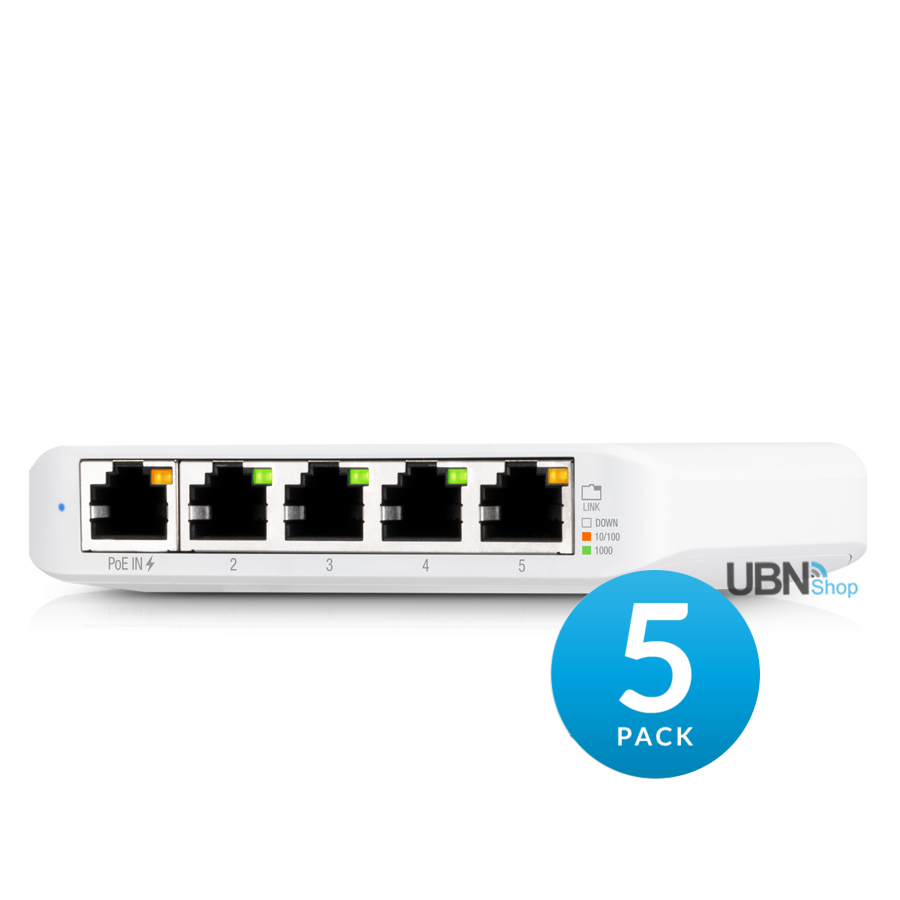

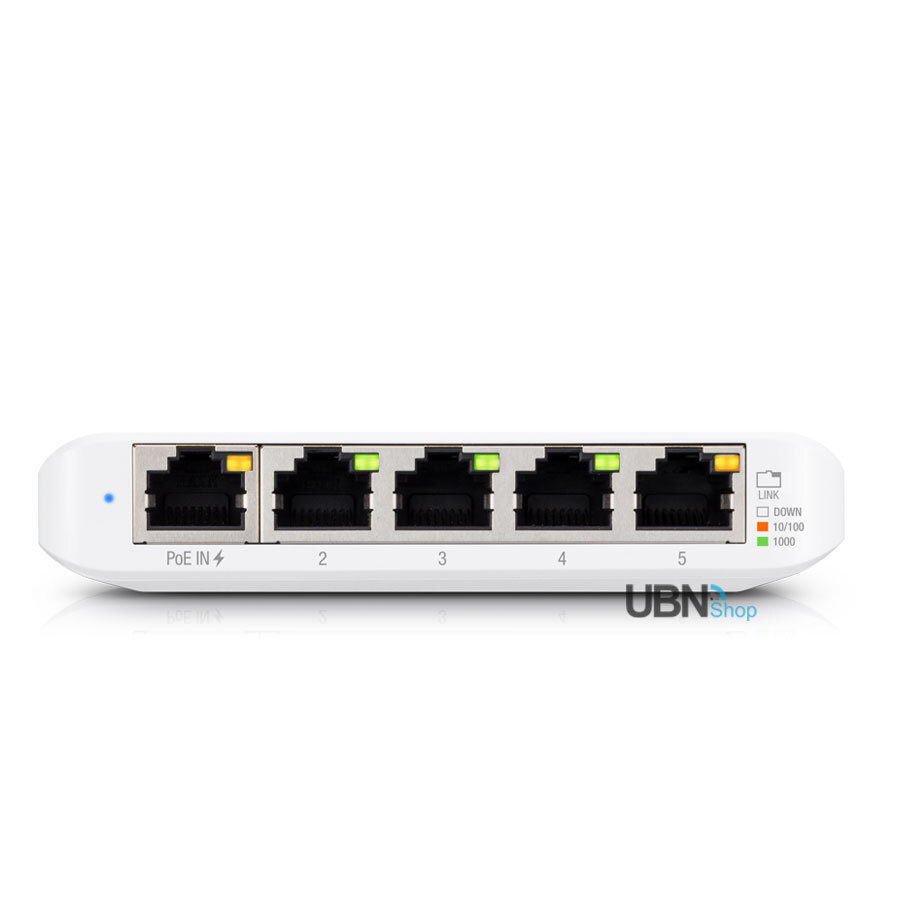

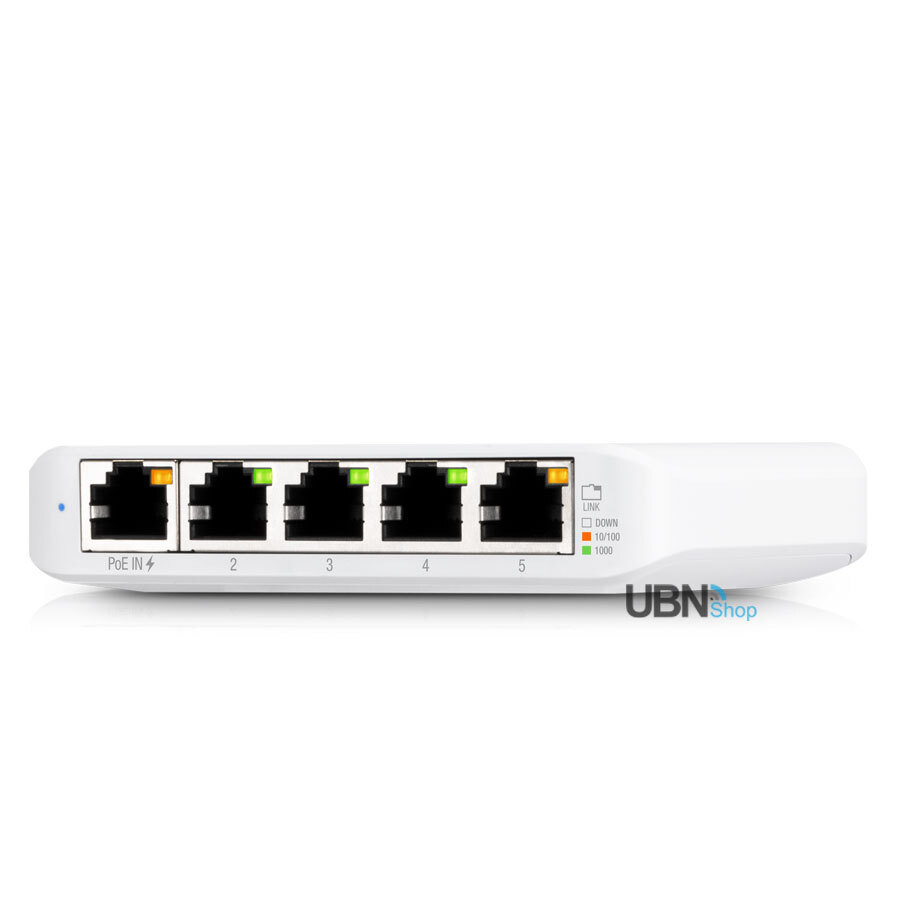

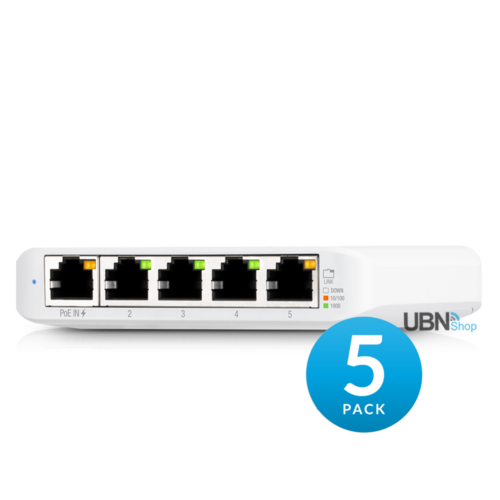

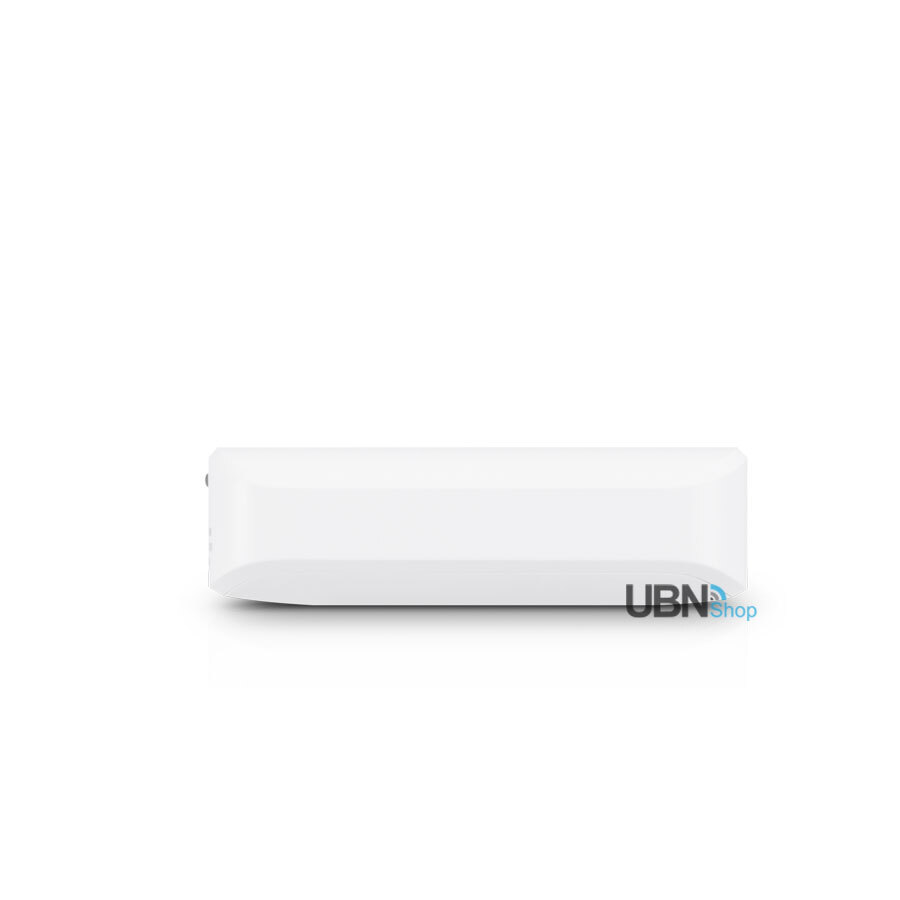

UniFi USW Flex Mini

Package Includes

  • 1 x USW-Flex-Mini
  • 1 x USB Type-C power adapter*
  • Quick Start Guide

* Included only in the single-pack of the USW-Flex-Mini.

UniFi USW Flex Mini - Specifications



USW-Flex-Mini

Dimensions

107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83")

Weight

150 g (5.29 oz)

Networking Interfaces

(5) 10/100/1000 Mbps RJ45 Ports

PoE In Interface

802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max. Power Consumption

2.5W

Power Method

USB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)

Power Supply

5V, 1A Power Adapter*

Voltage Range


USB Type C 4.7 - 5.2VDC
802.3af/at PoE 44 - 57VDC

LEDs


System Status
RJ45 Data Ports Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 12kV Contact

Operating Temperature

-5 to 45° C (23 to 113° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

* Included only in the single-pack of the USW-Flex-Mini.



Shipping Specifications

SKU USW-FLEX-MINI-5
Model # USW-FLEX-MINI-5
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.5000kg
Shipping Width 0.180m
Shipping Height 0.088m
Shipping Length 0.122m
Shipping Cubic 0.001932000m3
Unit Of Measure ea
