Managed PoE+ Gigabit Switch with SFP

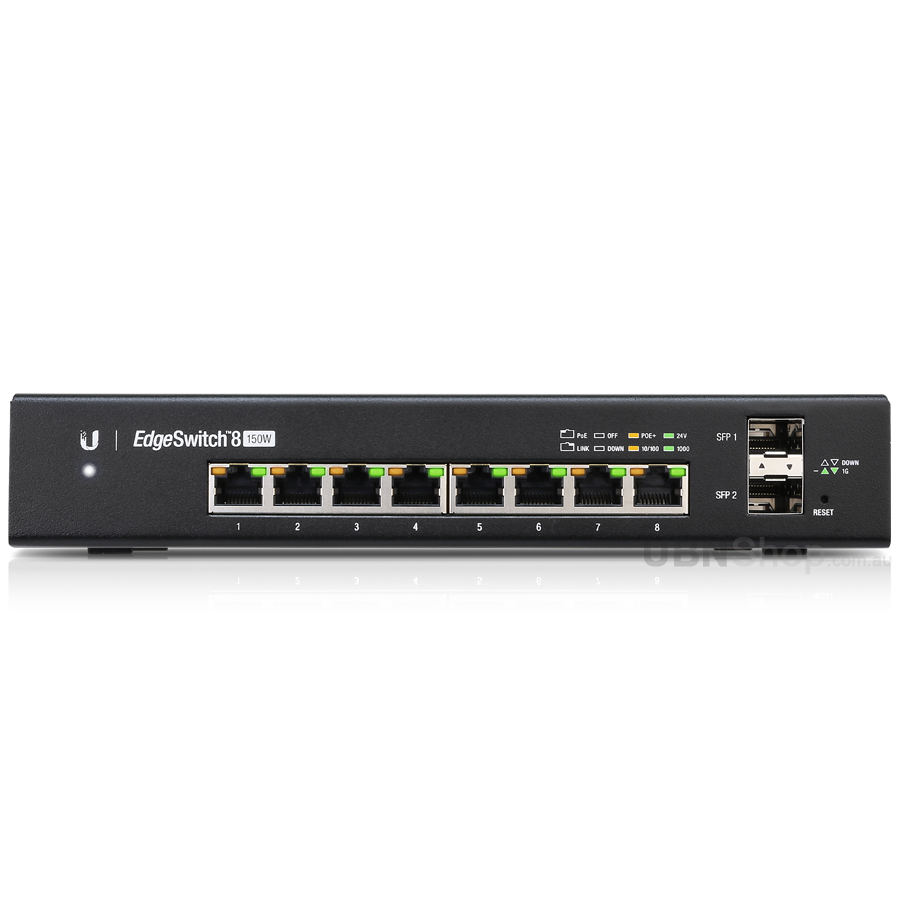

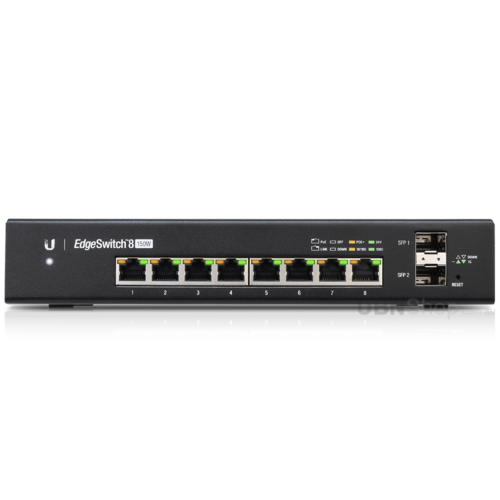

The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Gigabit Connectivity

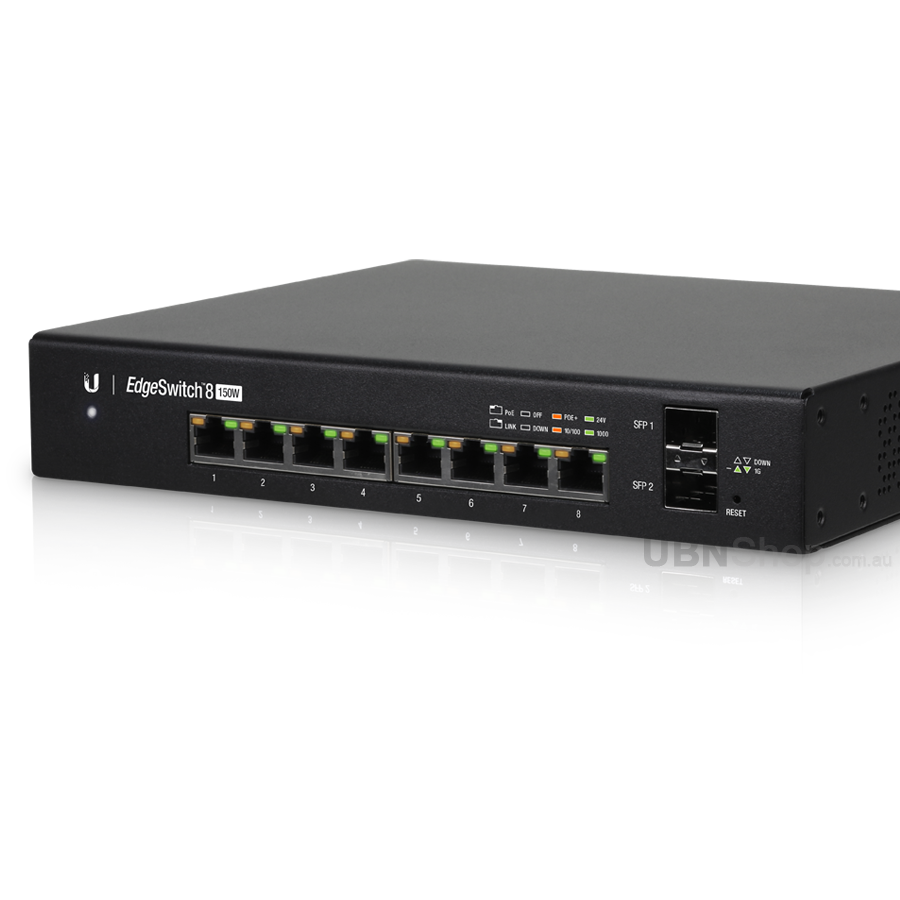

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fibre Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.



(ES-8-150W)

EdgeSwitch 8 Port 150W

Package Includes

  • 1 x EdgeSwitch 8 150W
  • 2 x Mounting Brackets
  • 8 x Bracket Screws (M4)
  • 4 x Mounting Screws (M4)
  • 4 x Screw Anchors (M4)
  • 1 x Power Cord
  • Quick Start Guide

EdgeSwitch 8 Port 150W - Specifications

EDGESWITCH
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
Weight Without Mount Brackets
With Mount Brackets		 1.72 kg (3.79 lb)
1.8 kg (3.96 lb)
Total Non-Blocking Throughput 10 Gbps
Switching Capacity 20 Gbps
Forwarding Rate 14.88Mbps
Max. Power Consumption
Includes PoE Output
Excludes PoE Output
150W
20W

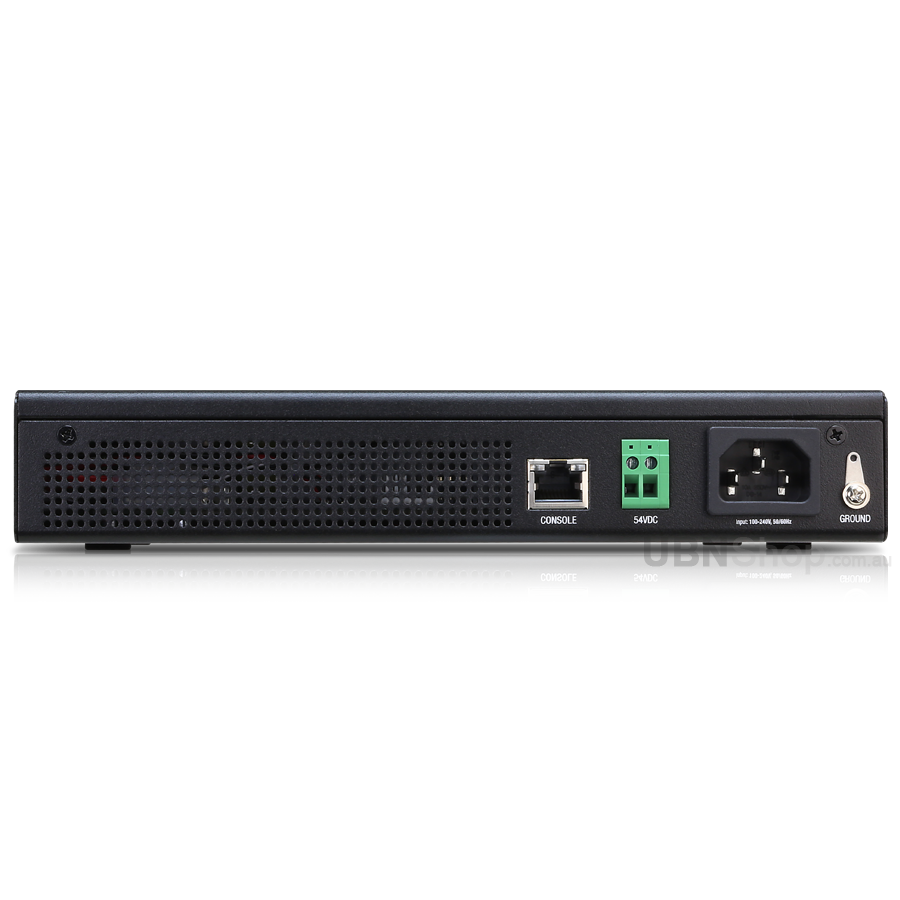

Power Method
AC
DC
100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply AC/DC, Internal, 150W DC
LEDs
Per Port RJ45 Data Ports
SFP Data Ports
PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces ((8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Wallmount Yes
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature
Internal AC/DC @ 150W
Internal AC/DC @ 100W
External DC
-25 to 45° C (-13 to 113° F)
-25 to 55° C (-13 to 131° F)
-25 to 60° C (-13 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Shipping Specifications

SKU ES-8-150W
Model # ES-8-150W
Barcode # ES-8-150W
Brand Ubiquiti
Shipping Weight 2.3000kg
Shipping Width 0.236m
Shipping Height 0.075m
Shipping Length 0.345m
Shipping Cubic 0.006106000m3
Unit Of Measure ea
