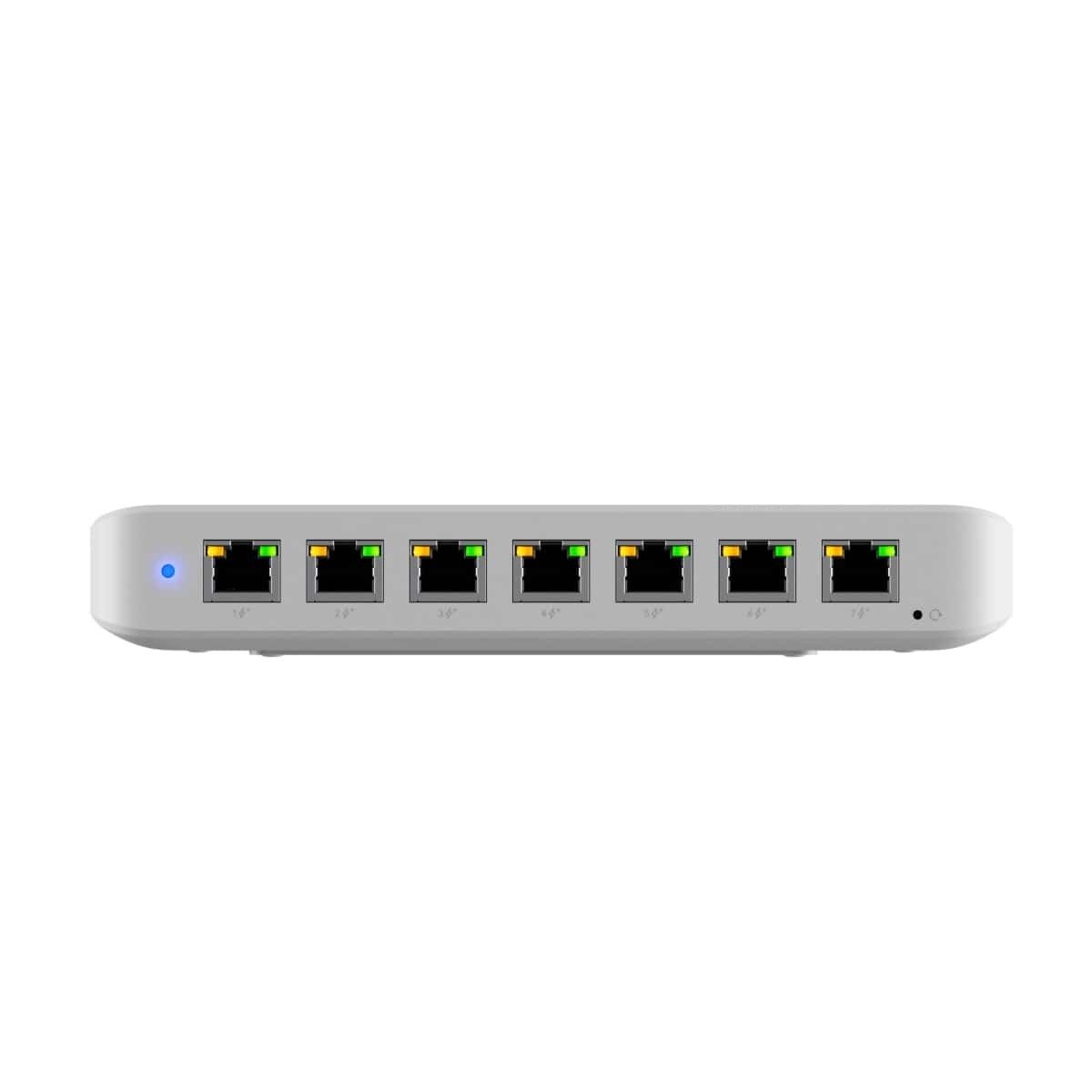

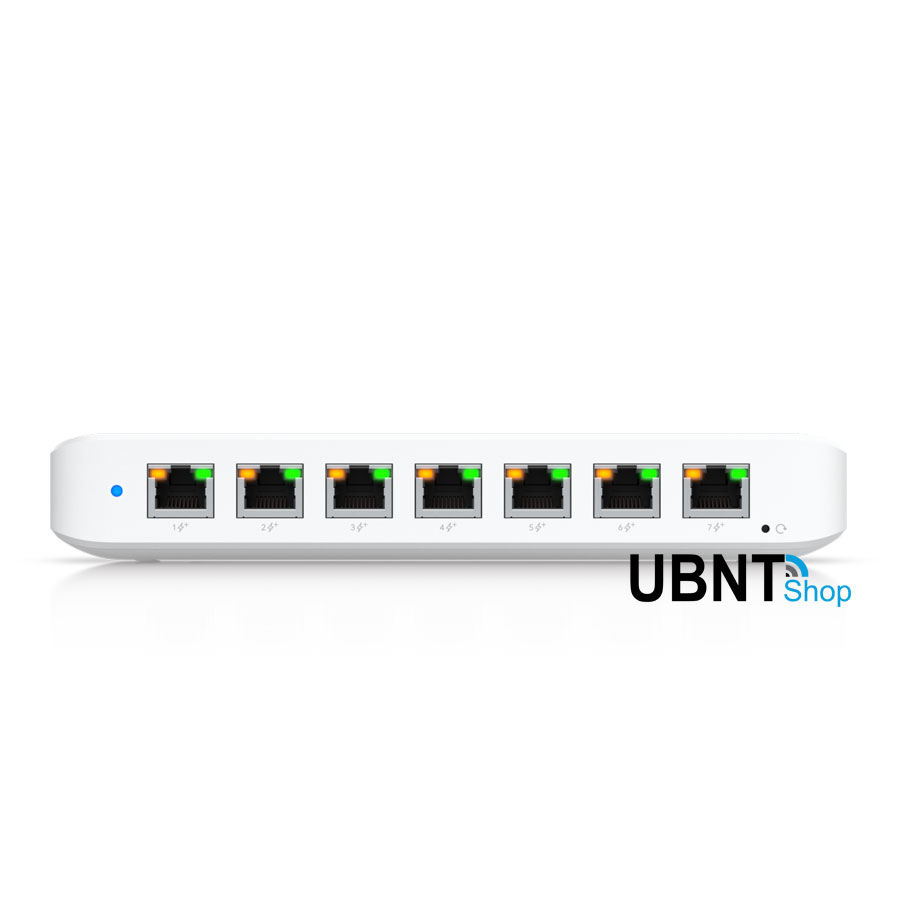

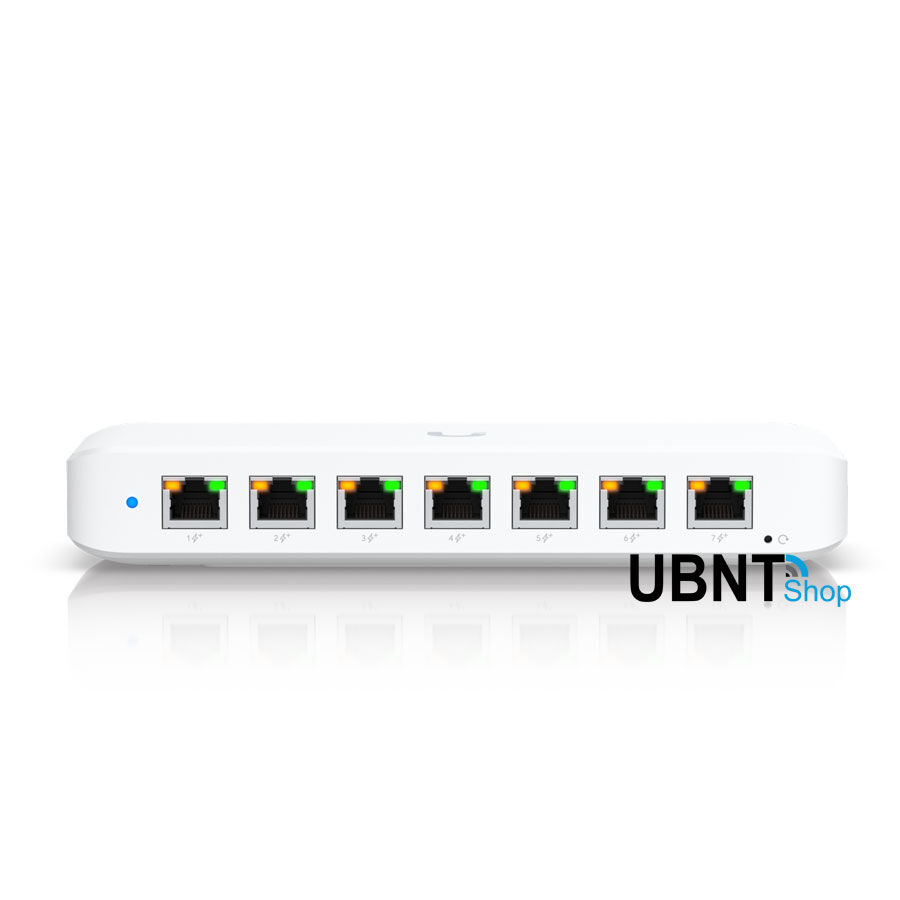

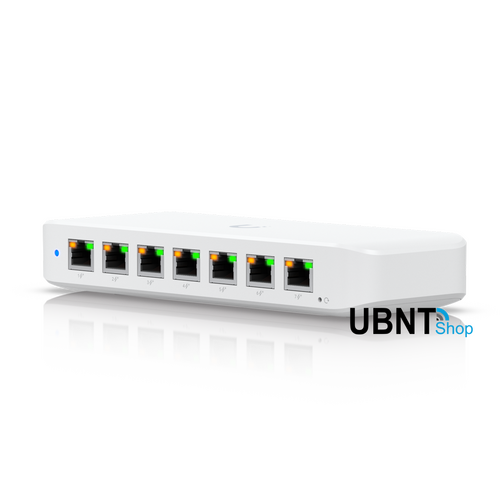

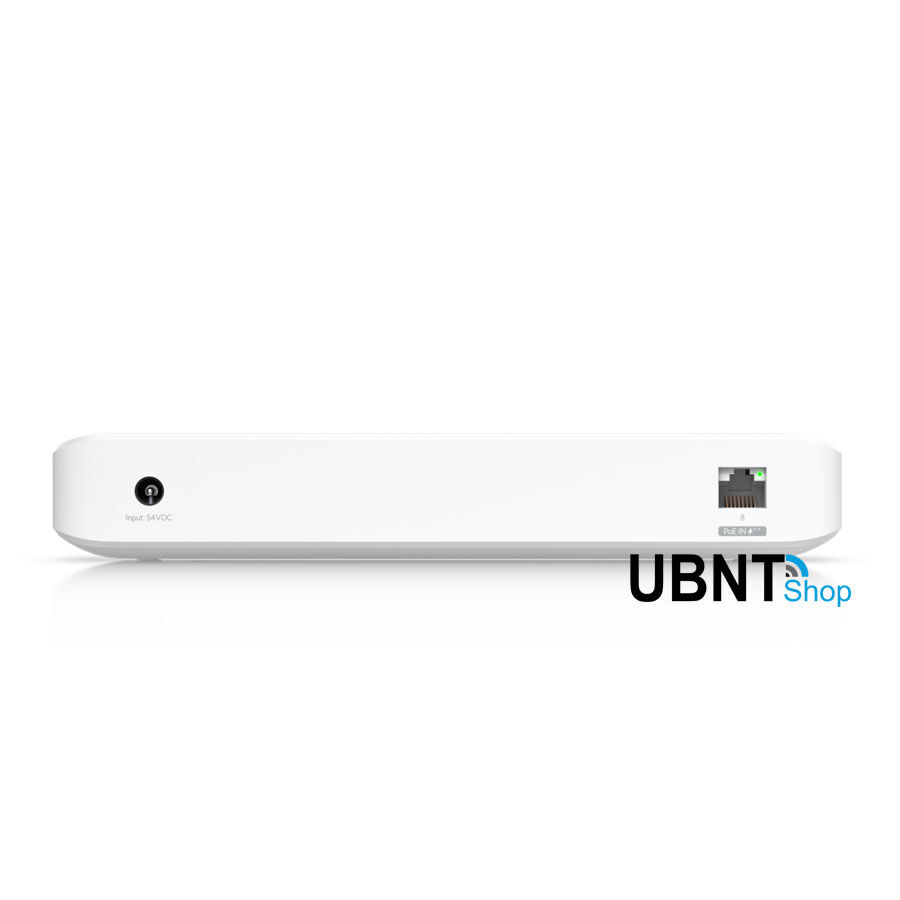

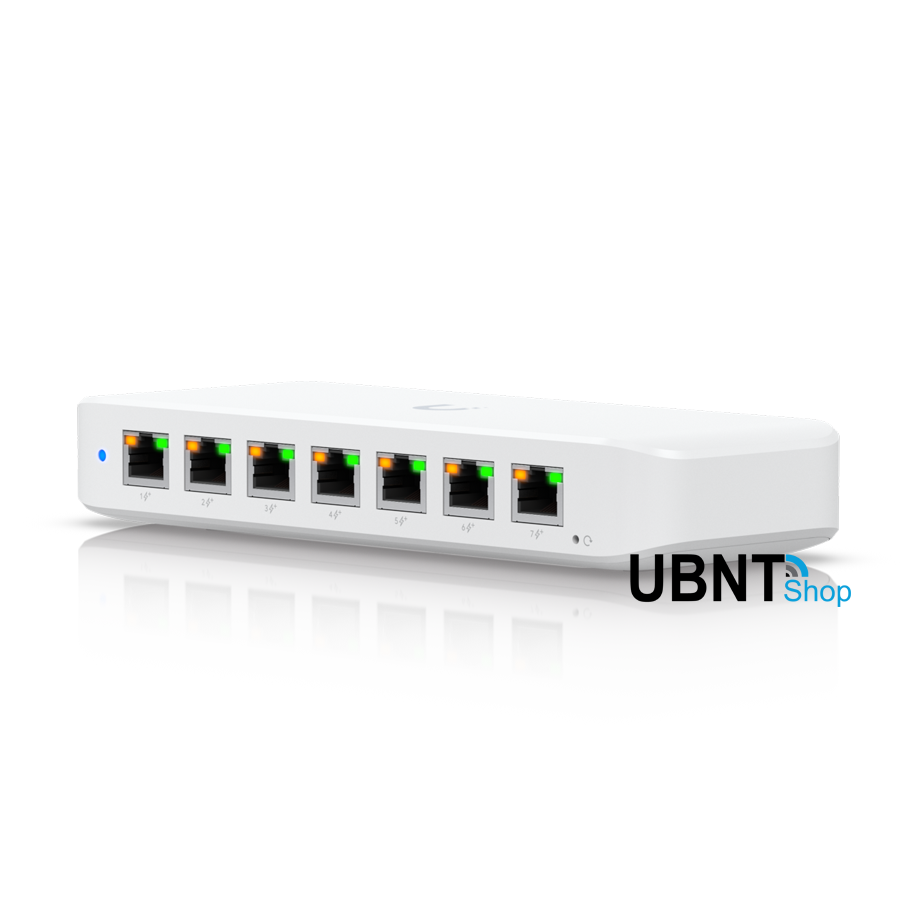

Ubiquiti Switch Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch Versatile Mounting Option,7 GbE PoE+ Output& 1 GbE port, Includes PSU



Ubiquiti Switch Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch Versatile Mounting Option,7 GbE PoE+ Output& 1 GbE port, Includes PSU



Ubiquiti Ultra 210W SKU: USW-Ultra-210W Description:A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options.

Features:

  • (7) GbE PoE+ output ports
  • (1) GbE port with optional PoE++ input — 202W PoE availability with the included AC power adapter — 42W PoE availability with PoE++ input — 17W PoE availability with PoE+ input — 8W PoE availability with PoE input
  • Power method: 54V, 3.9A power adapter (Included)
  • Power supply: 54V, external, 1.1A/60W •Supported voltage range: 44—57V DC
  • Total available PoE: 60W PoE++ input: 45W
  • DC adapter input: 202W
  • Passive PoE adapter input: 45W

(USW-ULTRA-210W)

Ubiquiti Switch Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch Versatile Mounting Option,7 GbE PoE+ Output& 1 GbE port, Includes PSU

Pack Includes:

Ubiquiti Switch Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch - In The Box

Ubiquiti Switch Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch Versatile Mounting Option,7 GbE PoE+ Output& 1 GbE port, Includes PSU- Specifications:

Ubiquiti Switch Ultra 210W, Compact 8-port Layer 2 GbE PoE Switch - Specifications



Mechanical
Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")
Weight Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Power method (1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
Power supply 54V, external, 3.9A/210W
Supported voltage range 44—57V DC
Max. power consumption 9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)
Total available PoE PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W*
*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
Max. PoE+ wattage per port by PSE 30W
Button Factory reset
Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features –
LEDs
System Status
Ethernet PoE
Link/activity
Application Requirements
UniFi Network Version 8.0.7 and later

Shipping Specifications

Shipping Specifications

SKU USW-ULTRA-210W
Model # USW-Ultra-210W
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.8500kg
Shipping Width 180.000m
Shipping Height 80.000m
Shipping Length 160.000m
Unit Of Measure ea
