UniFi Access G3 Reader Compact, White or Black, Third-generation

Ubiquiti G3 Reader, Black or White, Compact Third-generation Access Reader

Compact third-generation access reader with Apple Touch Pass support.

Unlock with an NFC card, UniFi Identity mobile app, or Touch Pass

Supports hand-wave unlocking as a request-to-exit device

Provides entry and exit greeting messages

IP55-rated weather resistance (-30 to 45°C)

Connects to UniFi Access Hub via PoE

* Available in White or Black

(UA-G3)

UniFi Access Reader G3, Compact Third-generation

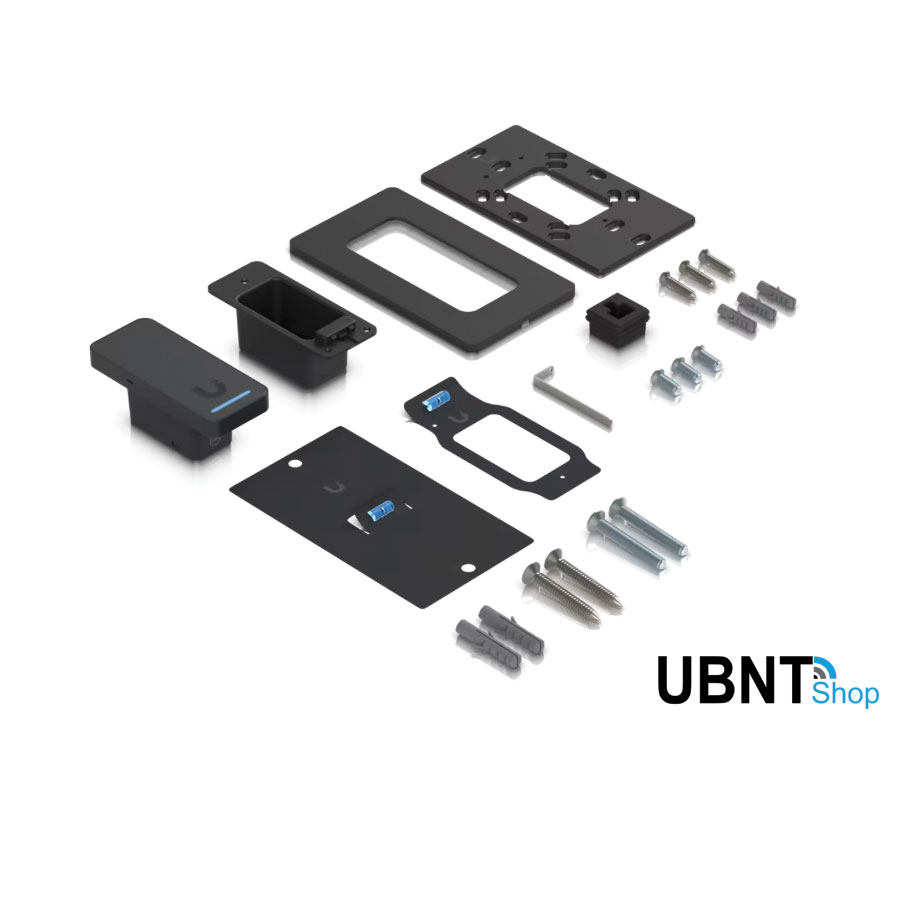

Pack Includes:

UniFi Access Reader G3, Compact Third-generation - Specifications

Technical Specifications

Mechanical
Dimensions	160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Weight	136 g (4.8 oz)
Enclosure material	Polycarbonate, glass
Mount material	Aluminum alloy
Mounting	Wall mount (Included) Gangbox mount (Included) Angle mount (Optional) Junction box (Optional)
Weatherproofing	IP55
Hardware
Networking interface	(1) GbE RJ45 port
Connectivity	BLE 4.2 NFC
Power method	PoE
Supported voltage range	48V DC
Max. power consumption	6W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensor	Proximity sensor
Camera view angle	H: 96.67°, V: 123.15°, D: 153.11°
Microphone	Yes
Speaker	(1) 4 ohm, 1.5W
LEDs	R/G/B/W/Amber (Learn more)
Button	(1) Factory-reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
Operating environment	Outdoor use
Ambient operating temperature	Device: -30 to 45° C (-22 to 113° F) Display:* -10 to 45° C (14 to 113° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
Ambient operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC

SKU	UA-G3
Model #	UA-G3-B
Barcode #	NHU-UA-G3-Pro
Brand	Ubiquiti
Shipping Weight	0.1500kg
Shipping Width	0.045m
Shipping Height	0.040m
Shipping Length	0.100m
Shipping Cubic	0.000180000m3
Unit Of Measure	ea

UniFi Access Reader G3, Compact Third-generation - Documents

Installation Guide UniFi Access READER G3

Datasheet UniFi Access READER G3
