Fully Managed 8-Port Gigabit Switch

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.

(US-8)

UniFi Switch 8 (No PoE)

Package Includes

  • 1 x UniFi Switch 8
  • 2 x Mounting Screws
  • 2 x Screw Anchors
  • 1 x Power Adapter
  • 1 x Power Cord
  • Quick Start Guide

UniFi Switch 8 (No PoE) - Specifications

UNIFI SWITCH US-8
Dimensions 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight 432 g (15.24 oz)
Enclosure Characteristics SGCC Steel
Total Non-Blocking Throughput 8 Gbps
Switching Capacity 16 Gbps
Forwarding Rate 11.9 Mpps
Max. Power Consumption 12W (Excluding PoE Output)
Max. Passive PoE Wattage per Port PoE Mode 1: 12W @ 802.3at
PoE Mode 2: 12W @ 48V
DC Input Mode: 12W @ 48V
Passive PoE Voltage Range Depends on Power Source

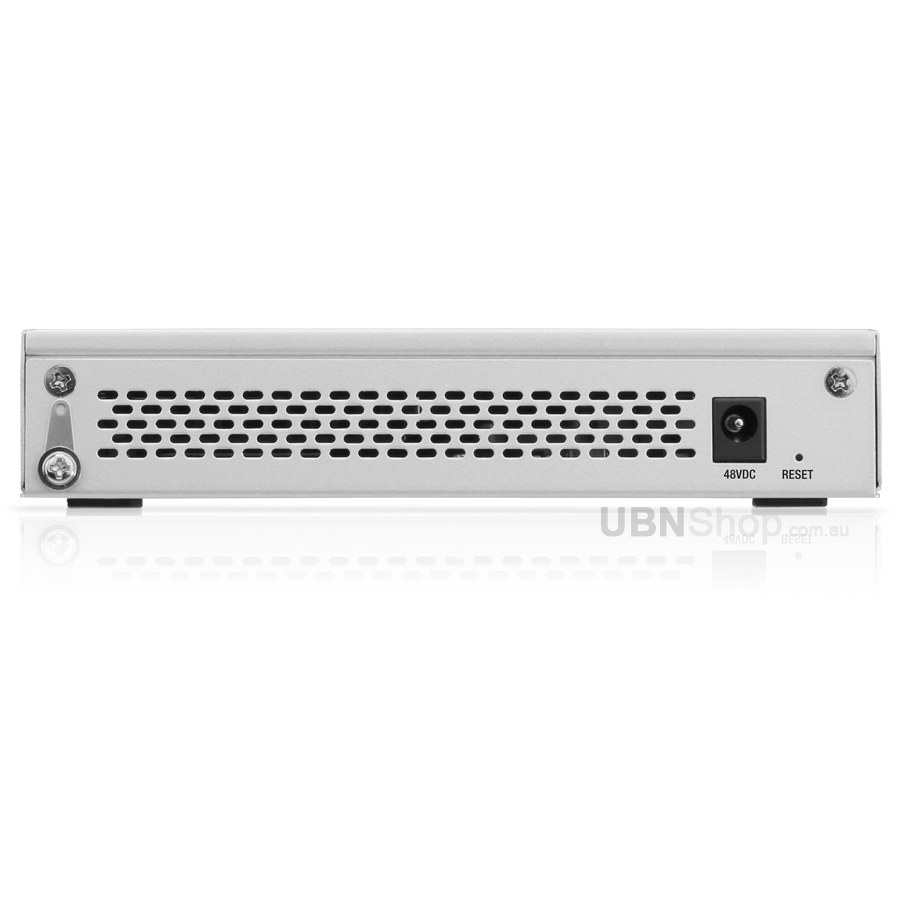

Power Method (1) DC 48V, Max. 1.25A
(1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)
Supported Voltage Range DC: 48V; 48V Mode: 56V to 40V
Power Supply External AC/DC Adapter, 48V, 0.5A
LEDs PoE (Port 8), Speed/Link/Activity (All Ports)

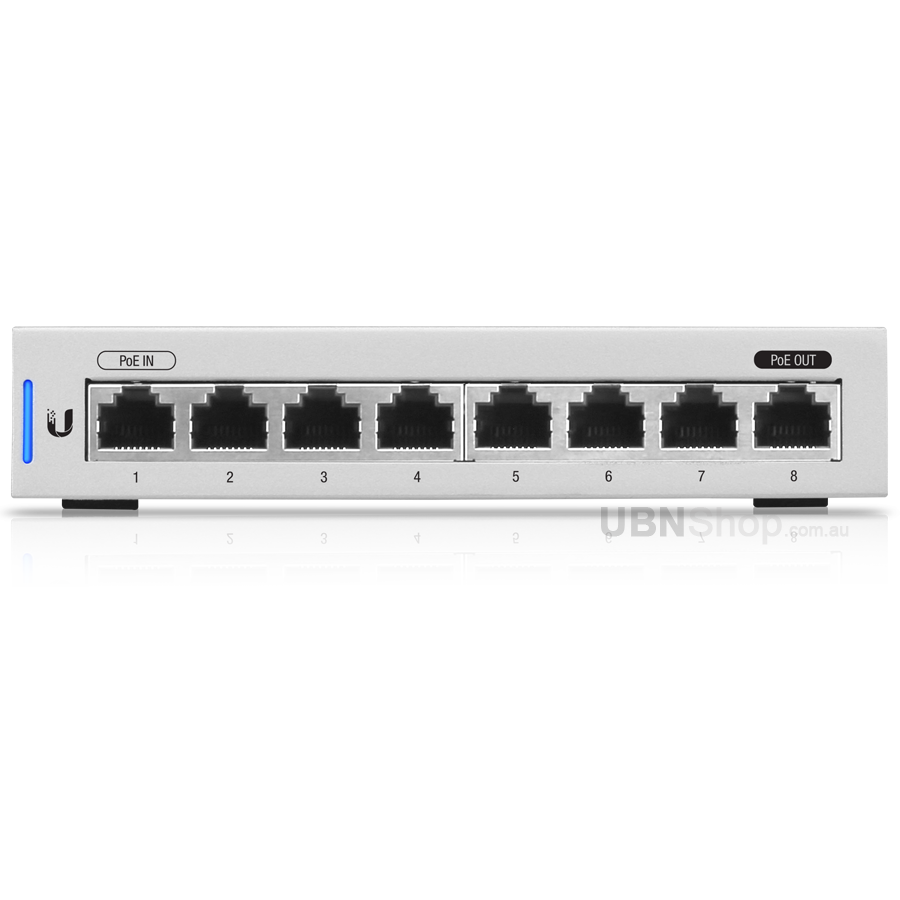

Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
PoE Interface (Port 1) PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)
PoE Interface (Port 8) PoE Mode 1: 48V (Pins +1, 2; -3, 6)
PoE Mode 2: Passive 48V
(2-Pair Pins +4, 5; -7, 8)
DC Input Mode: DC Passthrough
(Pins +1, 2; -3, 6)
Management Interface Ethernet In-Band Management
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
Certifications CE, FCC, IC

Shipping Specifications

SKU US-8
Model # US-8
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.7500kg
Shipping Width 0.135m
Shipping Height 0.087m
Shipping Length 0.221m
Shipping Cubic 0.002596000m3
Unit Of Measure ea
